Mini Pan-Tilt Kit - Assembled with Micro Servos

This Pan-Tilt Servo Kit provides smooth two-axis movement for cameras, sensors, and other lightweight payloads, with two included micro servos and a fully assembled mount ready for robotics and automation projects.

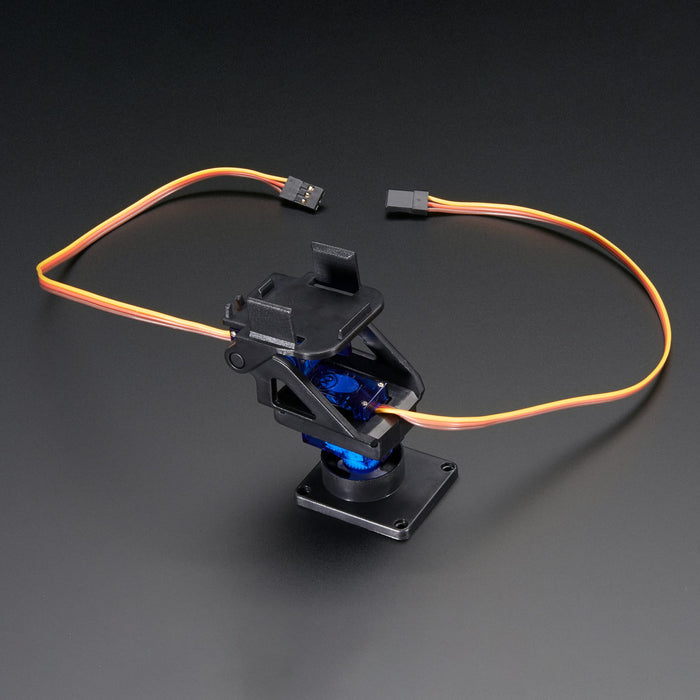

This fully-assembled pan-tilt kit is the perfect way to give your project full range motion with two micro servos.

The pan-tilt can rotate roughly 180° from side-to-side and can tilt upwards and downwards around 150°.  It also comes fully assembled with two Micro Servos (SG-90 or SG-92 type) included and a 38mm x 36mm space to mount a camera or sensor or whatever you like.

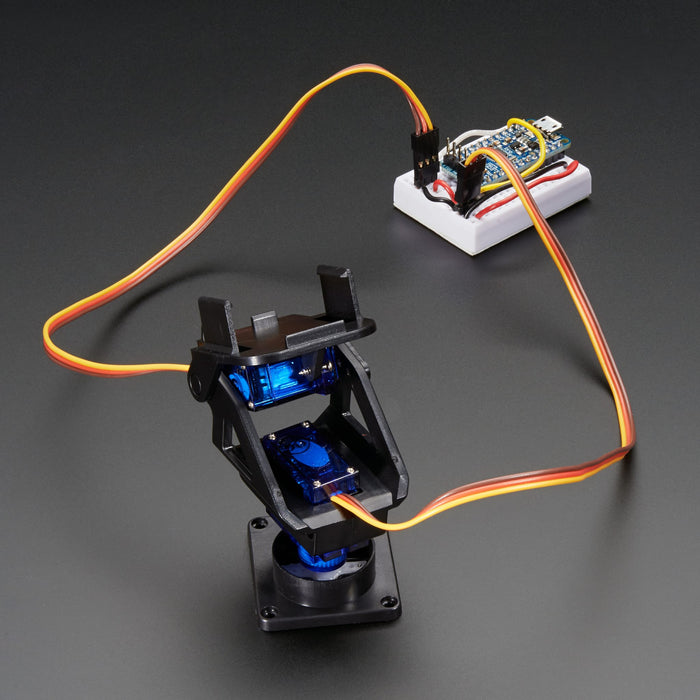

Since the motors are plain, every-day analogue servos, you can use any microcontroller or driver. They're good for beginners who want to make stuff move and the pan-tilt is an easy way to give whatever you're making both left-right and up-down motion. In our demo, we hooked this up with a Trinket Pro and made it do a little dance with the Arduino Servo library.

Please note: White servo horn comes pre-cut. Breadboard, wires and controller not included.

Features

• Fully assembled pan-tilt kit with two included micro servos (SG-90 or SG-92)
• 180° horizontal pan rotation
• 150° vertical tilt motion
• Compatible with any microcontroller or servo driver
• 38mm x 36mm mounting space for cameras, sensors, or custom payloads
• Standard analogue servo motors for easy control
• Beginner-friendly with Arduino Servo library support
• Ready to use out of the box

Specifications

• Base: 37mm x 33mm x 3mm
• Mounting Hole Distances: 30mm x 26mm
• Standing Height (zero tilt): 67mm
• Top Platform: 38mm x 36mm
• Weight: 37g

Resources

• Arduino servo library

Package Contents

• 1x Mini Pan-Tilt Kit - Assembled with Micro Servos

Breadboard, wires and controller not included.
