ESP32 PSRAM Timer Camera X (OV3660)

Description

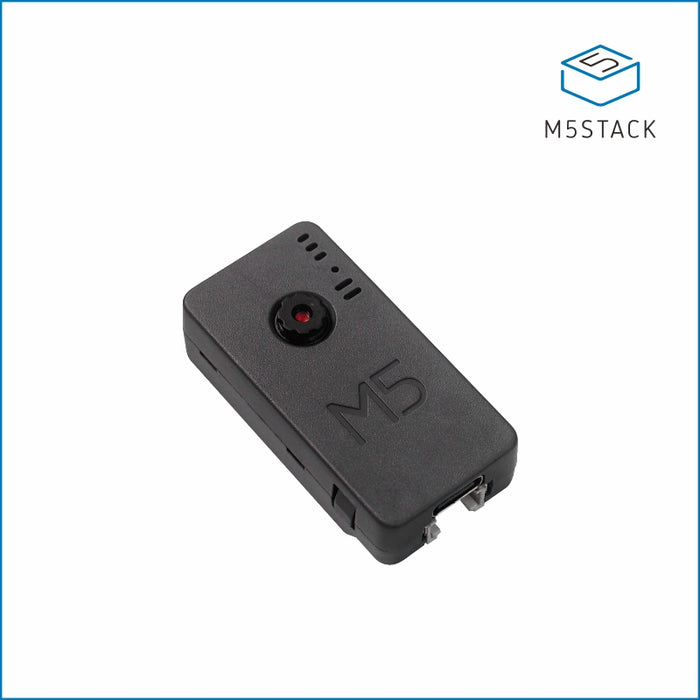

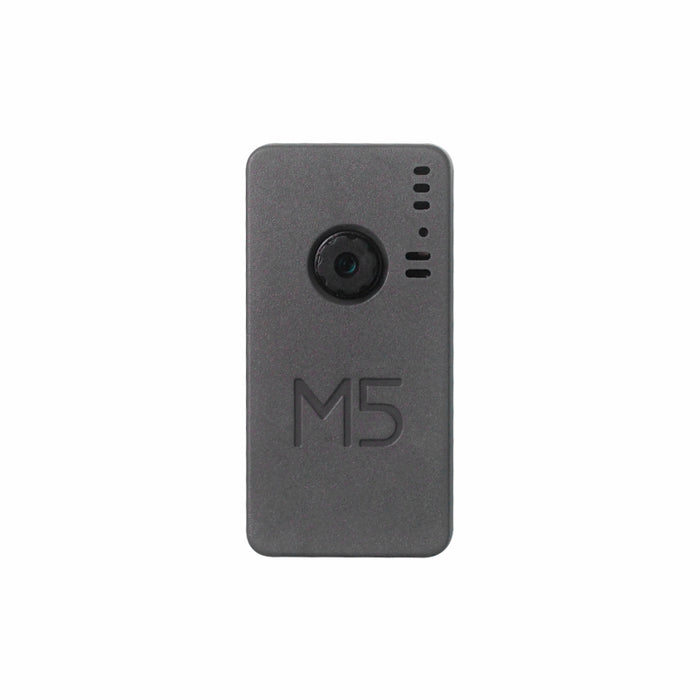

TimerCamera-X is a camera module based on the ESP32-D0WDQ6-V3, featuring onboard 8M PSRAM and a 3MP camera (OV3660) with a DFOV of 66.5°, capable of capturing photos at a maximum resolution of 2048x1536. It includes a built-in 140mAh battery and an LED status indicator, with a reset button located below the indicator for easy development and debugging. The camera is designed with ultra-low power consumption in mind, utilizing an RTC (BM8563) for timed sleep and wake functions, with a sleep current as low as 2μA. When set to take timed photos (one per hour), the battery can support continuous operation for over a month. The module supports WiFi image transmission and USB port debugging, with a HY2.0-4P port at the bottom for connecting other peripherals. Firmware can be flashed via M5Burner, allowing direct configuration of TimerCamera-X using Camera-Tool, or data processing in UIFlow.

Features

• ESP32-based design
• WIFI image transmission
• Timed sleep and wake
• Status indicator
• Ultra-low power design
• Built-in 140mAh battery
• Programming platforms: ESP-IDF/Arduino/UIFlow

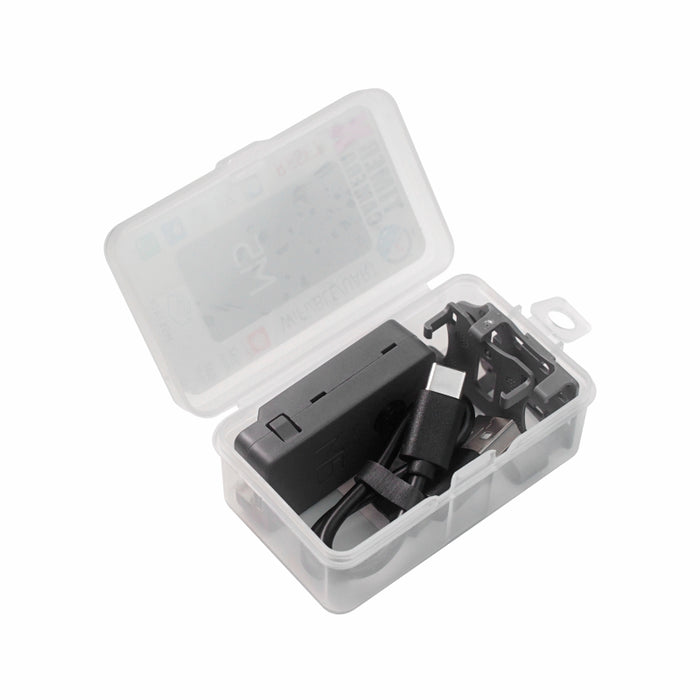

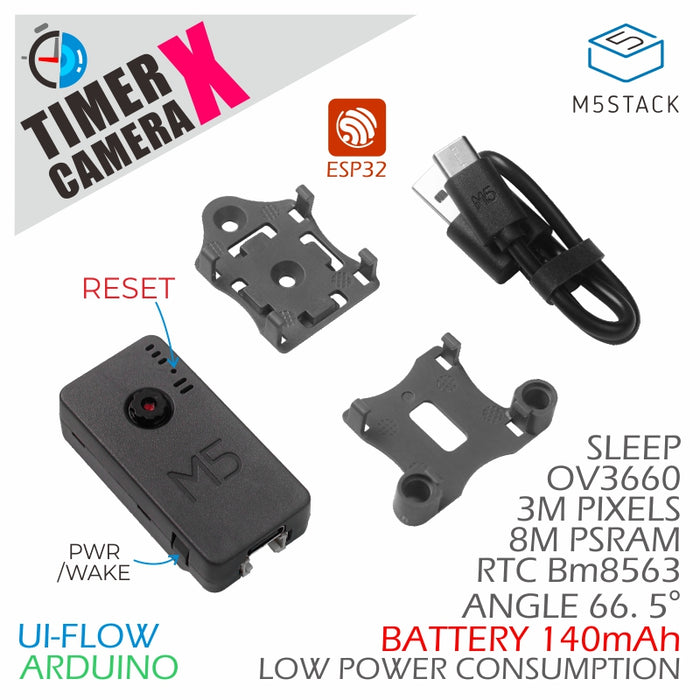

Includes

• 1 x TimerCamera-X

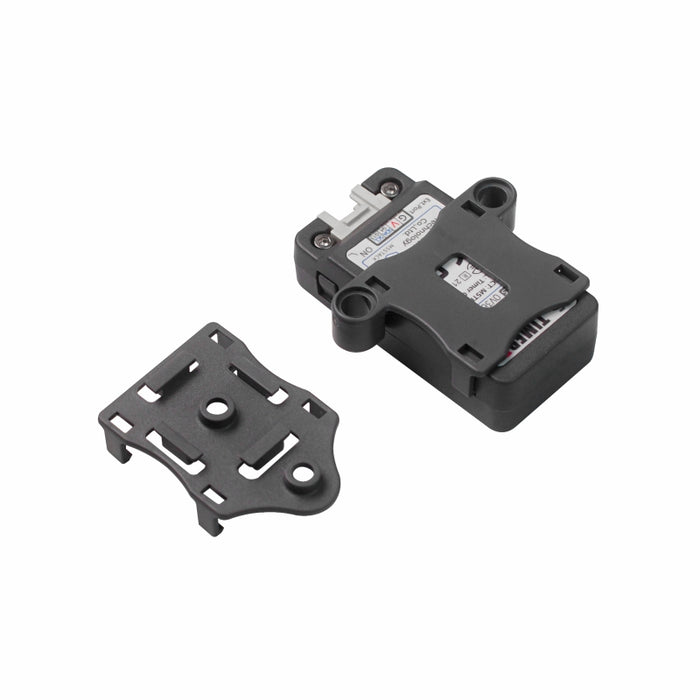

• 1 x LEGO Adapter
• 1 x Wall-1515
• 1 x USB Type-C cable (20cm)

Applications

• Timed photography
• Remote monitoring

Specifications
