[EOL] Ultrasonic Distance Unit (RCWL-9600)

This product is EOL. Please order the new version Unit Ultrasonic-I2C or Unit Ultrasonic-IO

Description

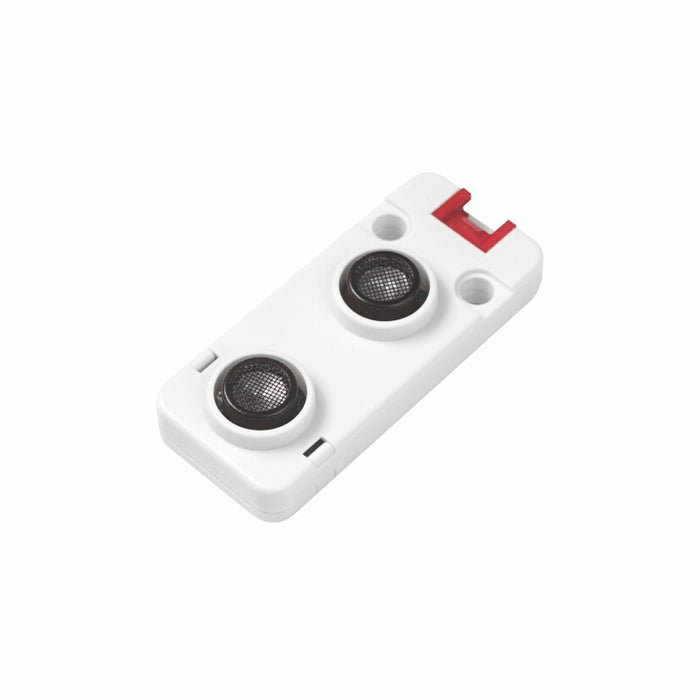

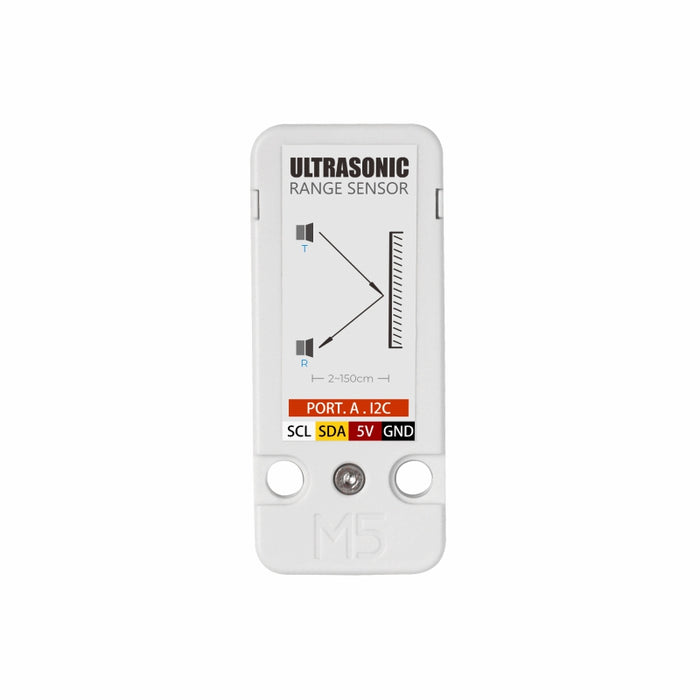

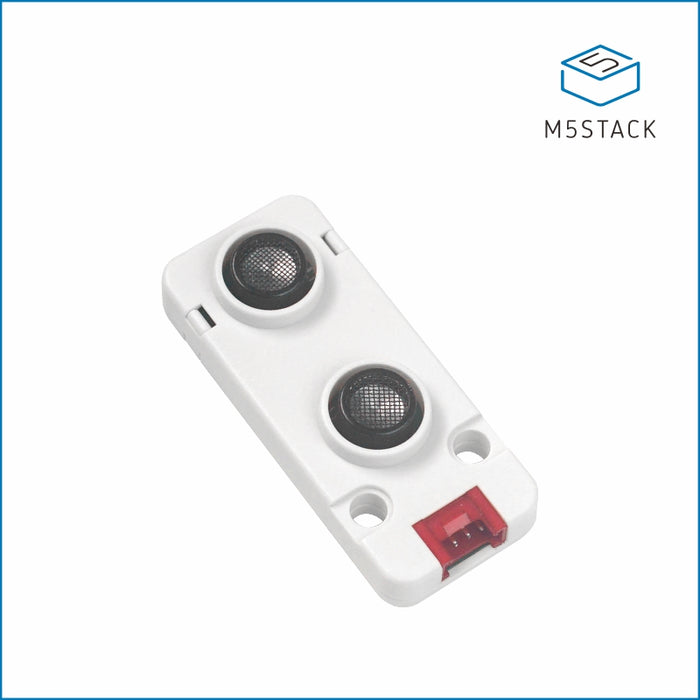

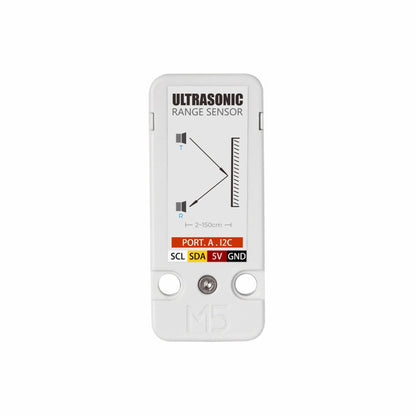

Unit Ultrasonic is an ultrasonic distance measurement sensor unit with a separate transmitter and receiver design. The ultrasonic probe operates at a frequency of 40kHz, with a directional angle of ±20° and an accuracy up to 1mm. It is powered by the RCWL-9600 ultrasonic ranging chip, which calculates the measurements internally, and the results can be directly obtained via the I2C interface (0x57). The effective measuring distance is 30 ~ 150cm.

Features

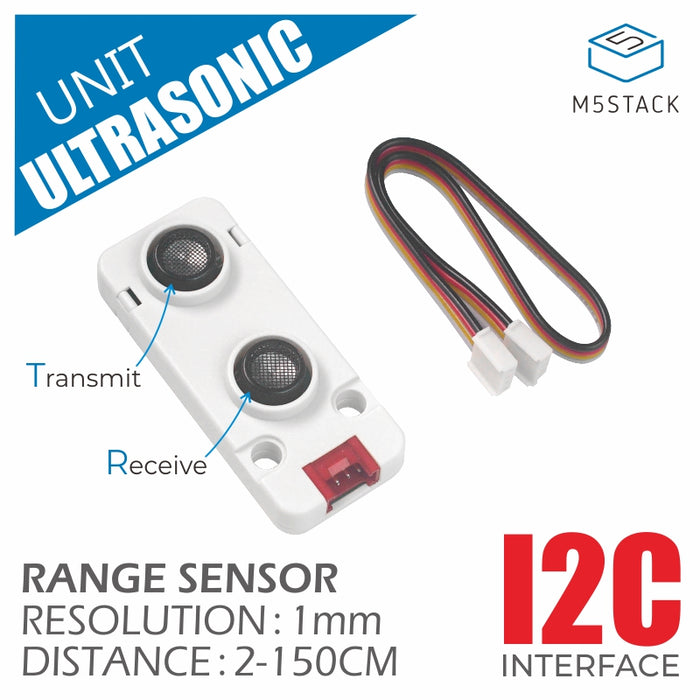

• Separate transmitter and receiver
• Effective distance 30-150cm
• Wide directional angle range
• I2C communication with direct result output

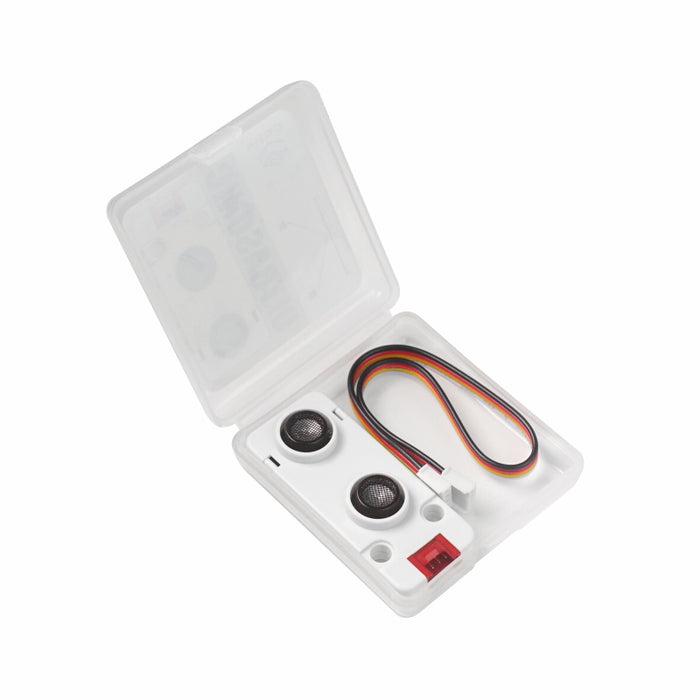

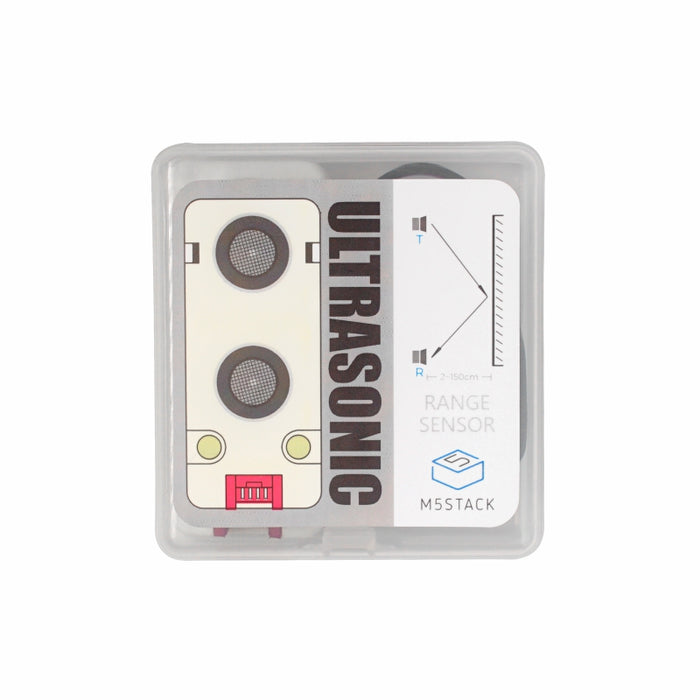

Includes

• 1 x Unit Ultrasonic
• 1 x PORT Cable (20cm)

Applications

• Distance measurement
• Obstacle avoidance

Specifications
