DIN Rail 2x20 IDC to Terminal Block Adapter Breakout

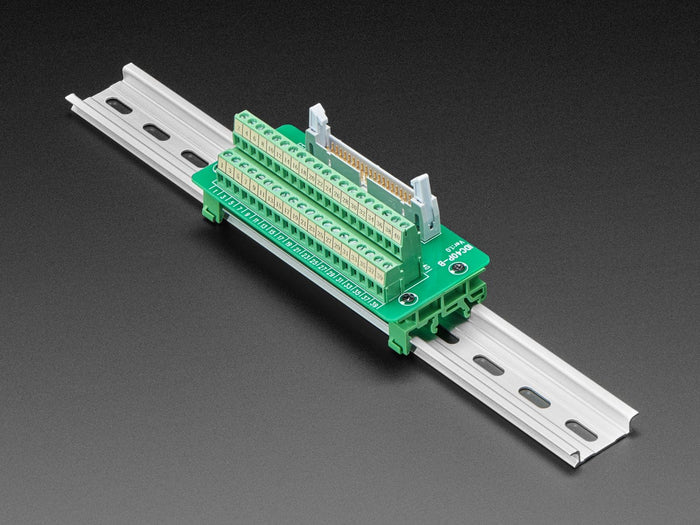

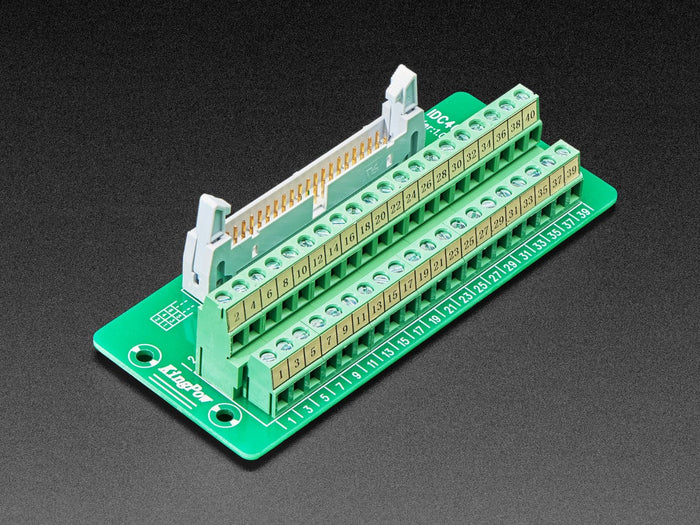

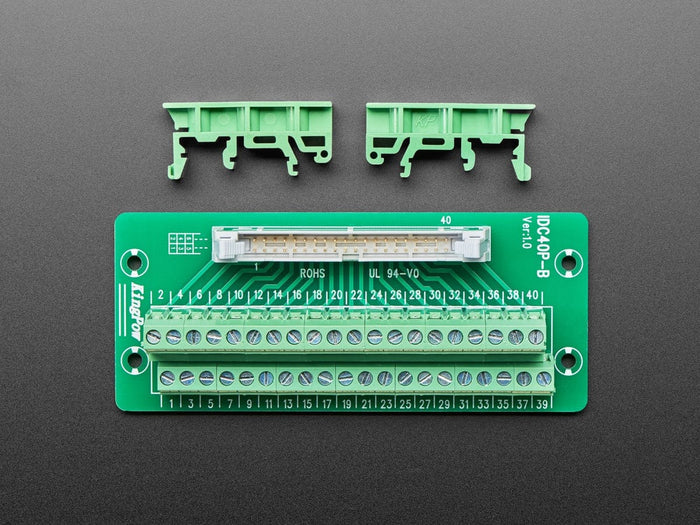

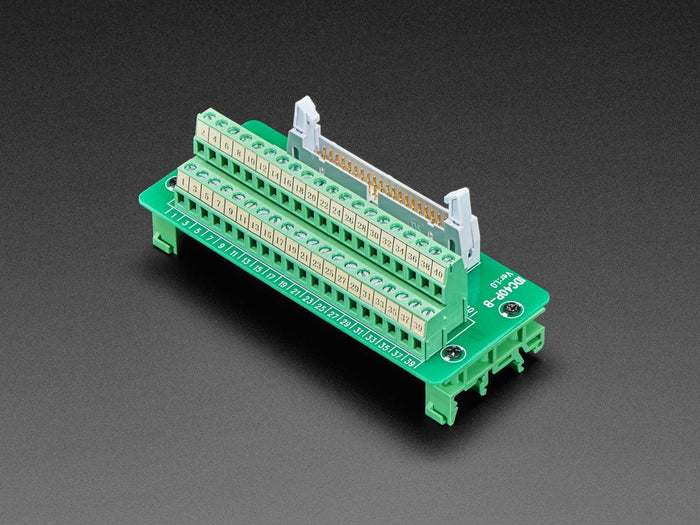

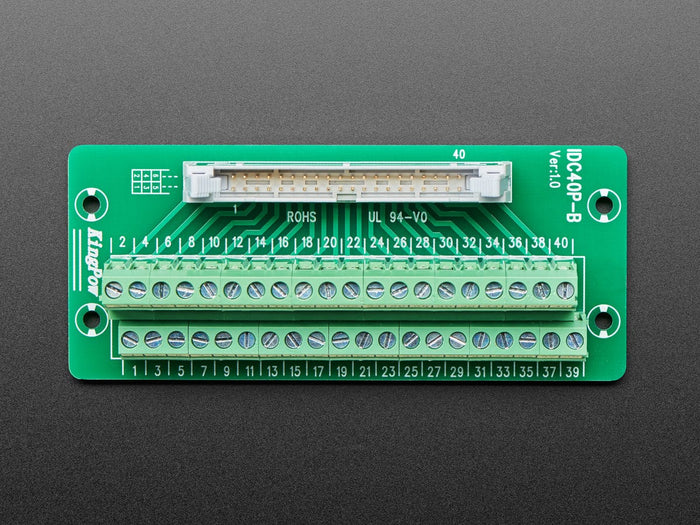

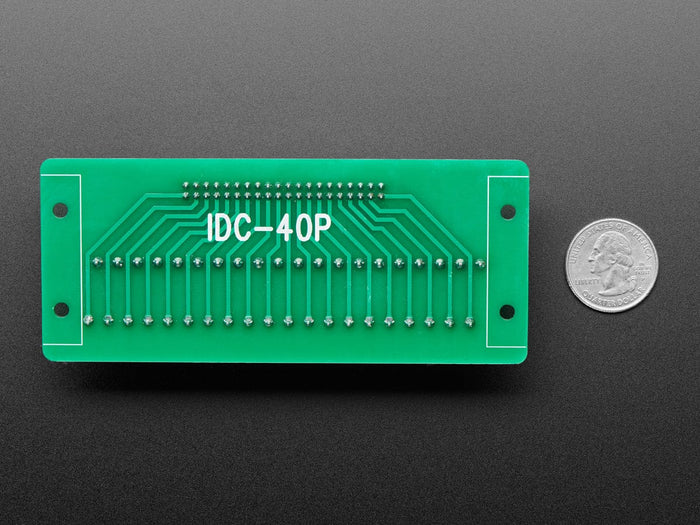

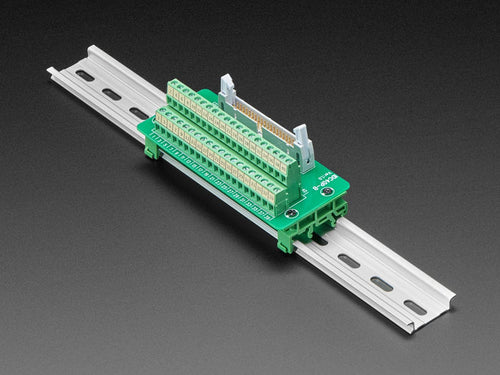

This one's going out to all the makers and designers who use DIN railing in their builds. This adapter plate is perfect for simplifying complex wiring. You connect a 2x20 IDC cable to this very PCB, which can be DIN rail-mounted. Then, all 40 pins are broken out into terminal blocks, so you can connect and power your sensors, displays, microcontrollers, etc.

No soldering required! Just unscrew the terminal blocks and slide in your stranded or solid-core wire.

Note: DIN rail is not included.

We also have a version with 2x8 IDC for smaller builds.
