Compact Switching Power Supply - Selectable Output 3-12VDC [discontinued]

Compact Switching Power Supply - Selectable Output 3-12VDC [discontinued]

✅ Made In USA

✅ Quick Delivery

✅ Cruelty Free

 (88 Reviews)
Regular price $10.88
Regular price $10.88 Sale price $14.90
SAVE 26% Sold out

add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

Compact Switching Power Supply - Selectable Output 3-12VDC [discontinued] by The Pi Hut - The Pi Hut

Compact Switching Power Supply - Selectable Output 3-12VDC [discontinued]

Regular price $10.88
Regular price $10.88 Sale price $14.90
SAVE 26% Sold out

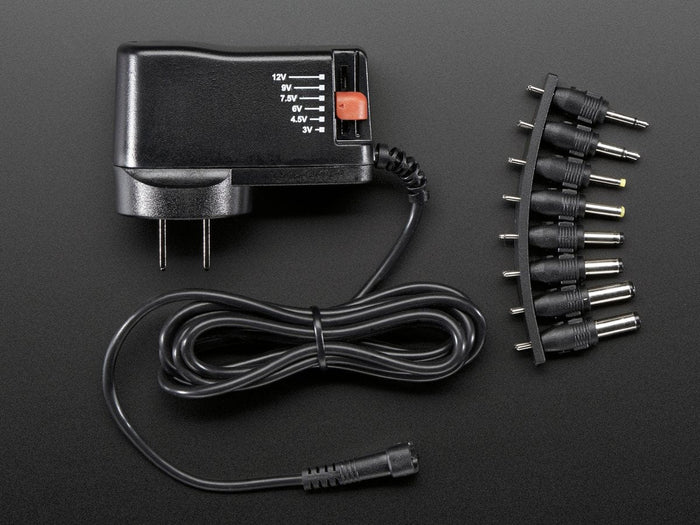

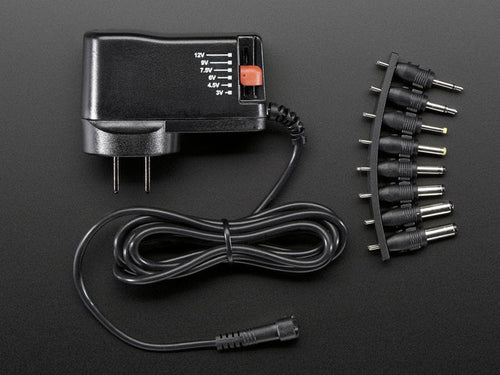

Wow, is this not the most useful thing you did not know existed or what? Its a switching wall adapter where you can easily change the voltage! It's like a benchtop supply you can take with you anywhere.

This model is 10 Watts and has 6 selectable outputs ranging from 3V to 12VDC and up to 1.5A output. It has a 2-prong plug, but takes 110VAC to 240VAC so you can use it anywhere with a simple plug adapter.

It comes with a range of tips, such as 2.5mm mono, 3.5mm mono, 5.5mm/2.5mm, 2.5mm/2.1mm, 4mm, etc. You can also change it from center positive (most common) to center negative (less common but seen in some audio gear) You could use this with just about any device or project, it's very handy!

Compact Switching Power Supply - Selectable Output 3-12VDC (1:27)

Technical Details

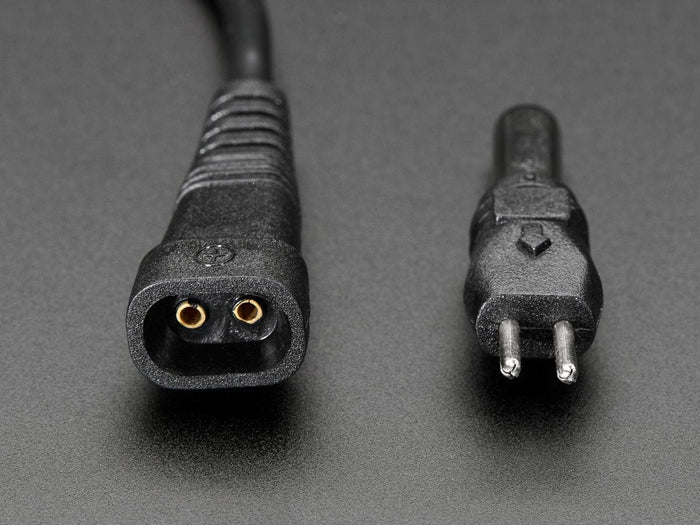

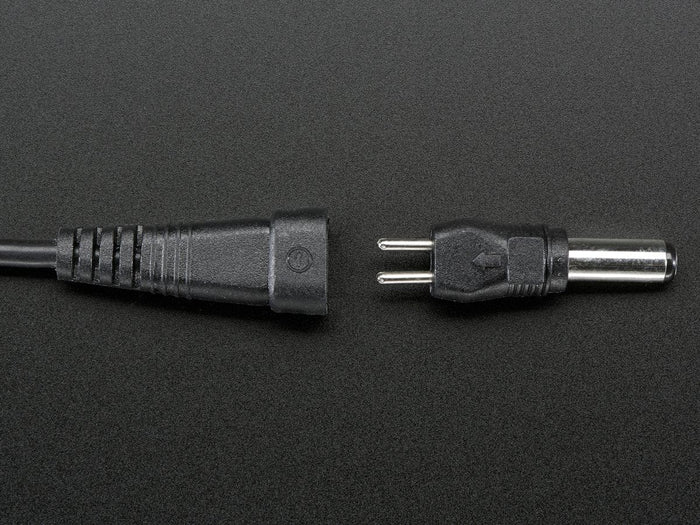

  • Multi changeable plug DC-cord.
  • Universal AC input 100V to 240V, 50Hz/60Hz
  • Universal AC input plug available (BSI, USA, Europe, Aust)

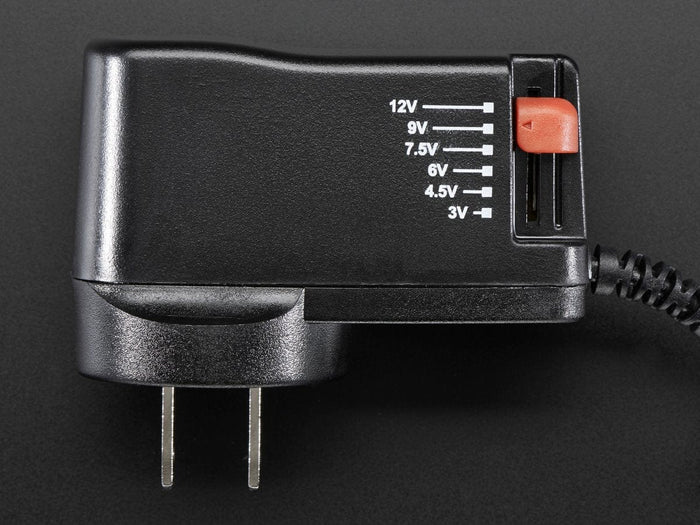

  • 6 selectable outputs: 3V-12V MAX. 1500mA.

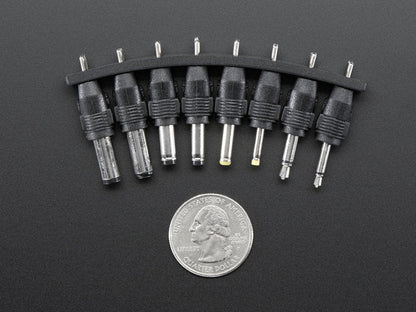

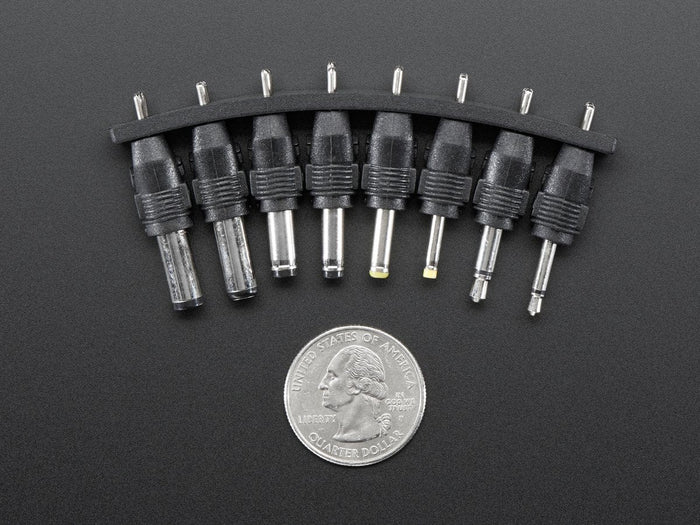

  • Selectable plugs: 2.5mm mono, 3.5mm mono, 3.0/1.0mm, 3.5/1.35mm, 4.0/1.7mm, 5.5/2.1mm, 5.5/2.5mm, 5.5/1.5mm
  • Over load, over current, over heat protection.

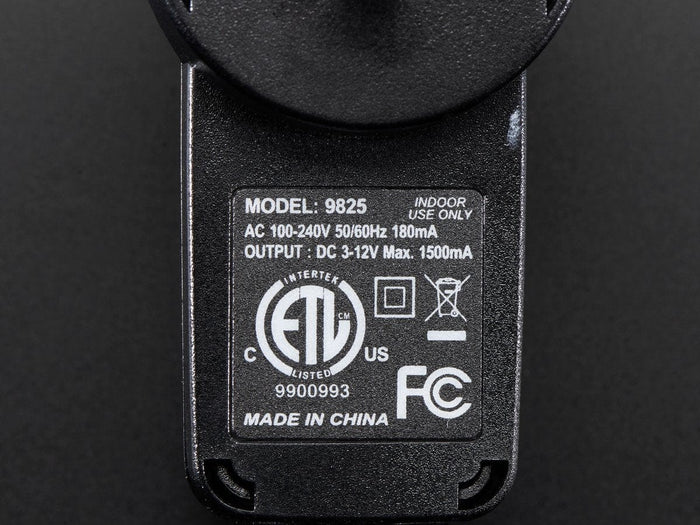

  • International approval CE EN60950, UL1950, CSA22.2 No.950.
  • EMC approval EN55022.
  • Extra low consumption during standby (about 8% of linear adapter).
  • Weight: 86g approximately.
  • Small size: 67x29x74mm.
  • Cable length: 1.54m / 60 3/4"
Below is the voltage current table and avoid higher loads!
Rate output Voltage 3V 4.5V 6V 7V 9V 12V
Max. output current at 220V 1.5A 1.2A 1.0A 0.9A 0.8A 0.7A
Max. output current at 110V 1.5A 1.2A 1.0A 0.9A 0.8A 0.6A
