ATOM Socket Kit (HLW8023) - JP&US

Description

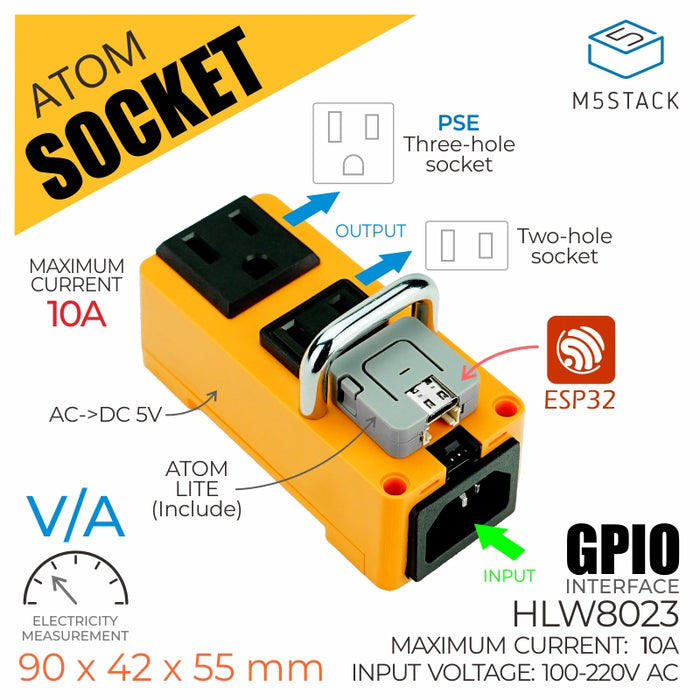

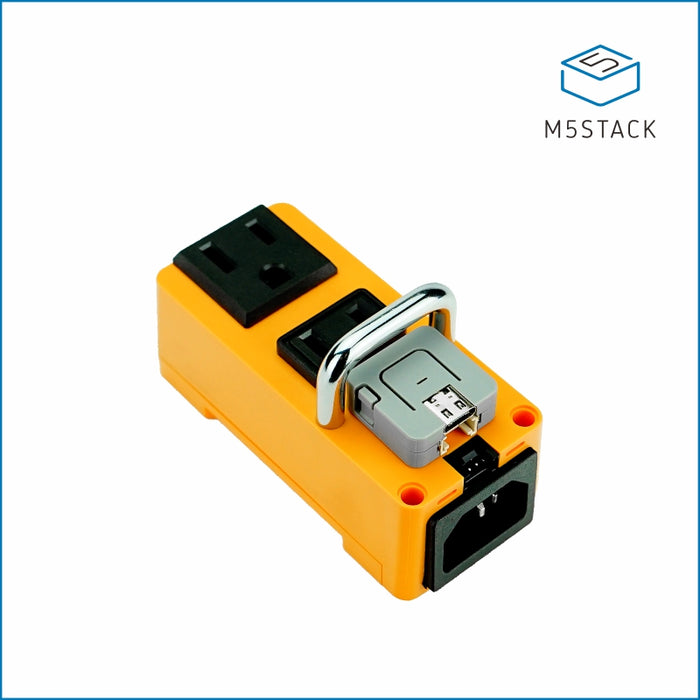

Atom Socket is a smart power socket compatible with the ATOM controller. It features the HLW8032 high-precision energy metering IC, which allows reading of electrical parameters (line voltage, current, active power, apparent power, and power factor) via serial communication. The external socket adopts Japanese standards, and the internal integrated single-channel relay (AC 100 ~ 120V@10A) controls the power on/off. Paired with the ATOM controller integrated with a WIFI module, this power socket can easily connect to the network, enabling remote control and energy metering. Additionally, the socket integrates a HY2.0-4P interface for interaction with external devices (relay signal input, button signal output).

Features

• Single-channel relay control for power on/off (AC:100~120V@10A)
• HLW8032 high-precision energy metering IC
• Supports voltage and current detection, power calculation, with a dynamic range of 1000:1:
  • Active power measurement error: 0.2%
  • Effective current measurement error: 0.5%
  • Effective voltage measurement error: 0.5%
• UART communication (baud:4800)
• Σ-Δ type ADC, high-precision energy metering core
• Japanese/American standard socket - PSE standard
• HY2.0-4P external control interface

Includes

• 1 x Atom-Lite
• 1 x Atom Socket

Applications

• Energy metering socket
• Smart WIFI socket
• Smart home appliance control
