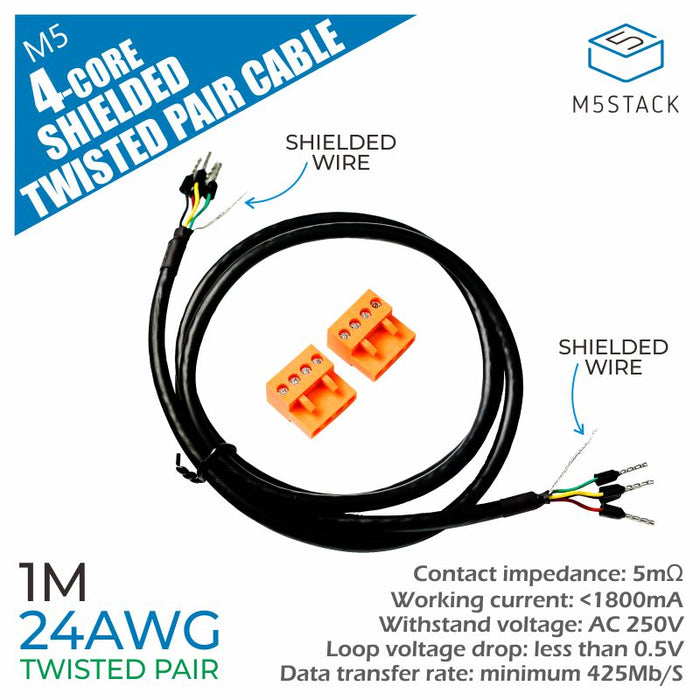

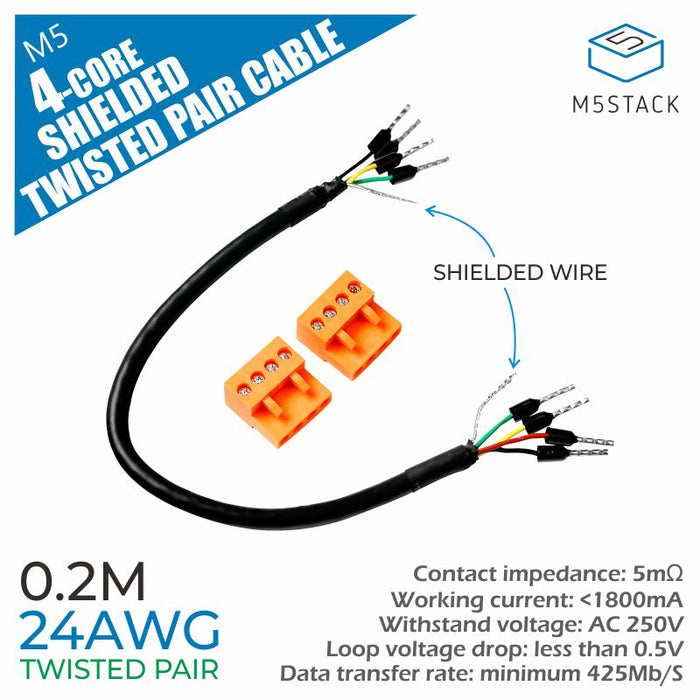

24AWG 4-Core Shielded Twisted Pair Cable

Description

Shielded Twisted Pair Cable is a shielded twisted-pair cable commonly used for building data communication lines. The internal aluminum foil and braided layers effectively reduce signal interference and enhance the stability of communication lines. It is suitable for general serial communication as well as RS485, RS232, CAN and other standard communication buses.

Features

• Electrical Characteristics
  • Operating Voltage: 2.5 ~ 9V
  • Operating Current: <1800mA
  • Loop Voltage Drop: <0.5V
  • Contact Resistance: 5mΩ
  • Rated Contact Current: 1.8A
  • Dielectric Withstanding Voltage: AC 250V
  • Data Transfer Rate: ≥ 425 Mb/s
• Environmental Requirements
  • Operating Temperature: -10 ℃ ~ +50 ℃
  • Storage Temperature: -10 ℃ ~ +35 ℃
  • Operating Humidity: <55 %
  • Humidity Range: 25 % R.H ~ 90 % R.H
• Cable Description
  • 24 AWG
  • Conductor: (11/0.16 + 4C), bare copper + aluminum foil + braid

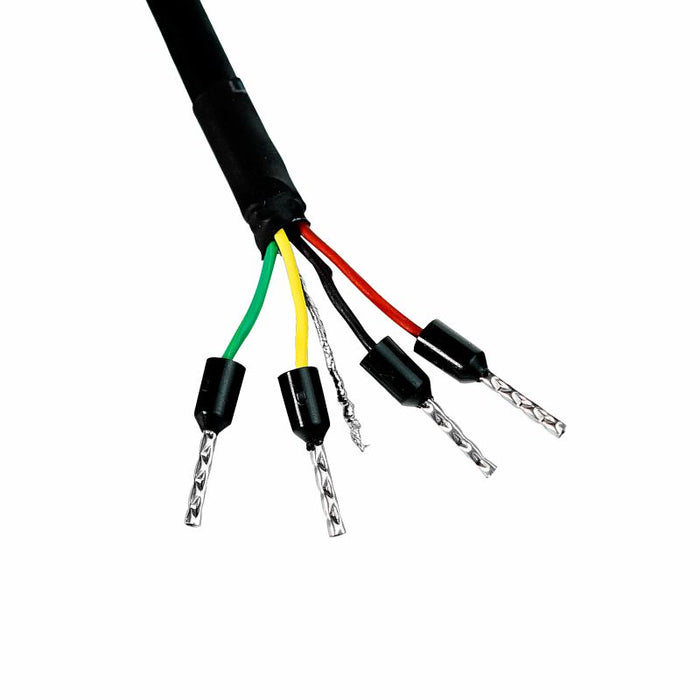

  • Insulation: TPE OD = 0.90 ± 0.05 mm, core colors: black, yellow, green, red
  • Cable Outer Diameter: 5.0 mm
  • Each core made of bare copper strands
  • Jacket: TPE, black, OD: 5.0 mm
  • Cable, plug and mechanical requirements: MAX; Contact Pull-out Force: ≥ 50 g

Includes

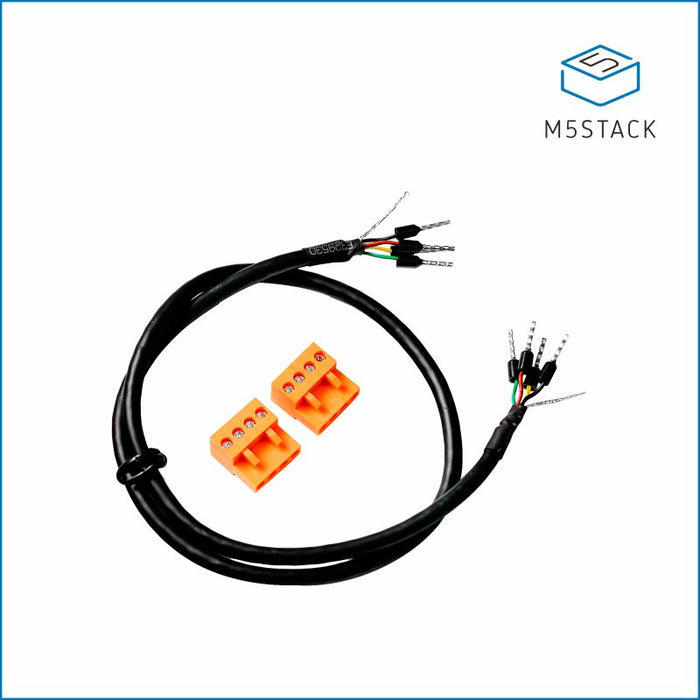

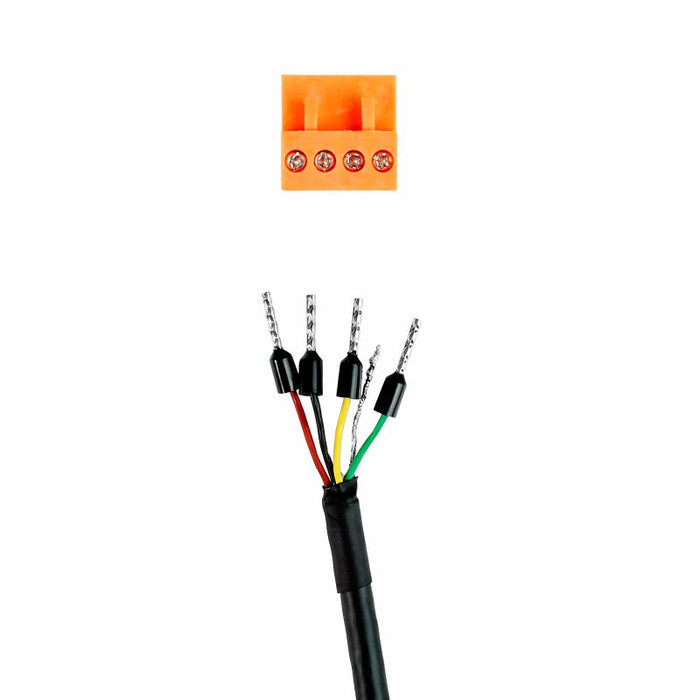

• A088: Shielded Twisted Pair Cable (1pcs 0.2m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

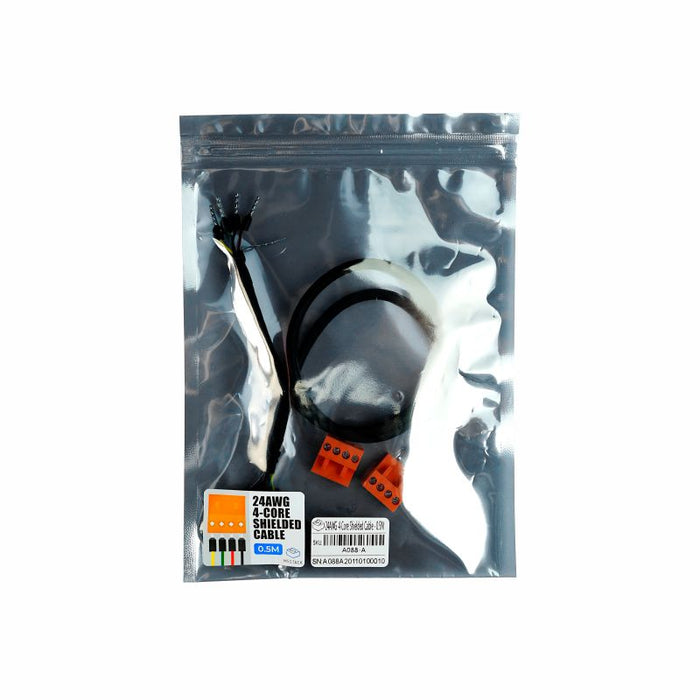

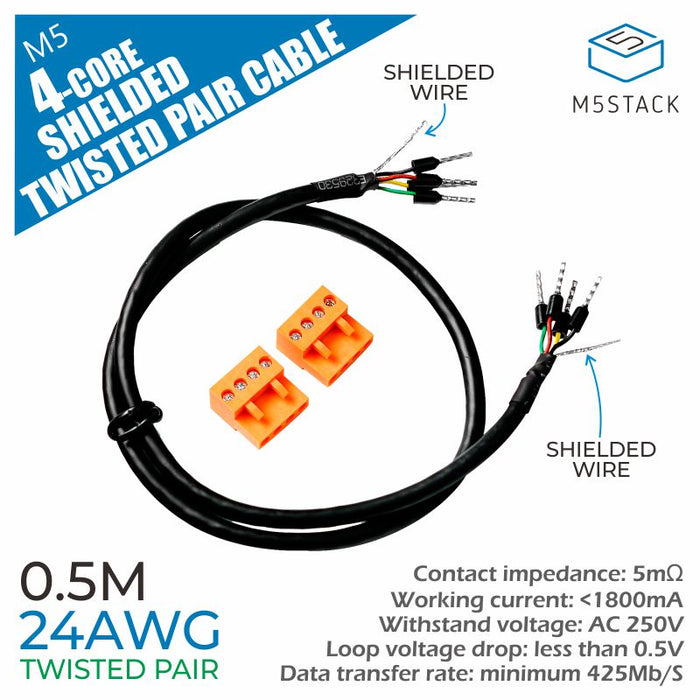

• A088-A: Shielded Twisted Pair Cable (1pcs 0.5m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

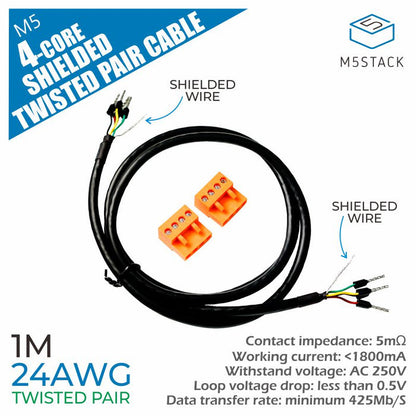

• A088-B: Shielded Twisted Pair Cable (1pcs 1m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

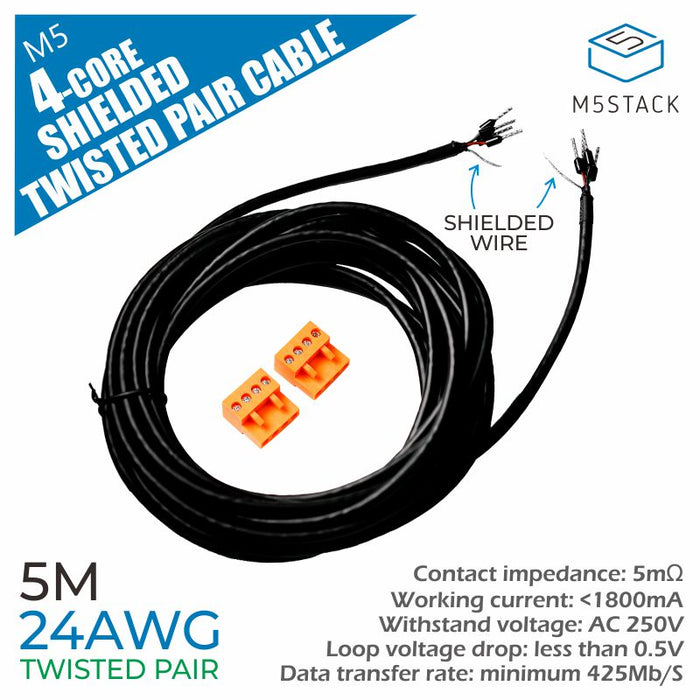

• A088-C: Shielded Twisted Pair Cable (1pcs 5m) + I/O Sticker (2pcs) + HT3.96-4P Terminal (2pcs)

Applications

• Building communication lines
